F series

Flexible cameras that let you see more

AXIS F Series offers flexible, high-performance cameras that support wide dynamic range and HDTV 1080p for superb image detail in extremely discreet indoor, outdoor and mobile surveillance applications. They are ideal for ATMs (automated teller machines), banks, stores, hotels, as well as rugged environments such as emergency vehicles.

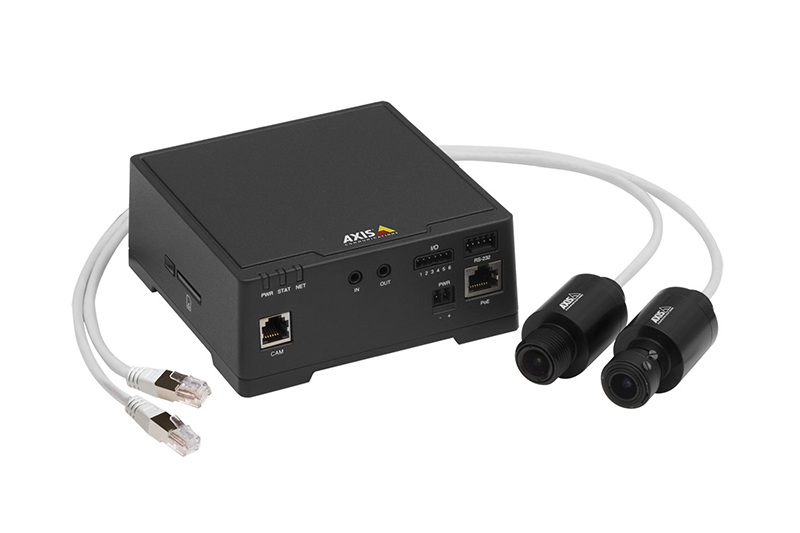

Based on a divided network camera concept, AXIS F Series comprises AXIS F41 Main Unit and AXIS F Sensor Units. AXIS F41 houses the processor, network, power and other connections, as well as a memory card slot. It is connected to an AXIS F Sensor Unit, which consists of a lens and image sensor with a 3-m (10-ft.) or 12-m (39-ft.) cable. The divided concept enables the small sensor unit to be installed discreetly.
The long cable from the sensor unit provides the flexibility to place the main unit where there is space.

The two available sensor units are AXIS F1005-E with a 113° horizontal field of view for indoor/outdoor use, and the varifocal AXIS F1015 with a 53° to 108° horizontal viewing angle for indoor use.

AXIS F41 Main Unit supports Wide Dynamic Range – Forensic Capture, which enables details from both bright and dark areas of a scene to be visible—ideal for scenarios such as at entrances or in front of ATMs where the subject would usually be dark against a bright background. It also provides HDTV 1080p performance at up to 50/60 frames per second for capturing fast-moving objects and generating smoother video.

AXIS F41 supports audio in and out, RS232 for integration of external data to the video, four configurable input/output ports for connection to external equipment, and intelligent video applications. It can be powered by Power over Ethernet or an 8–28 V DC power supply.
