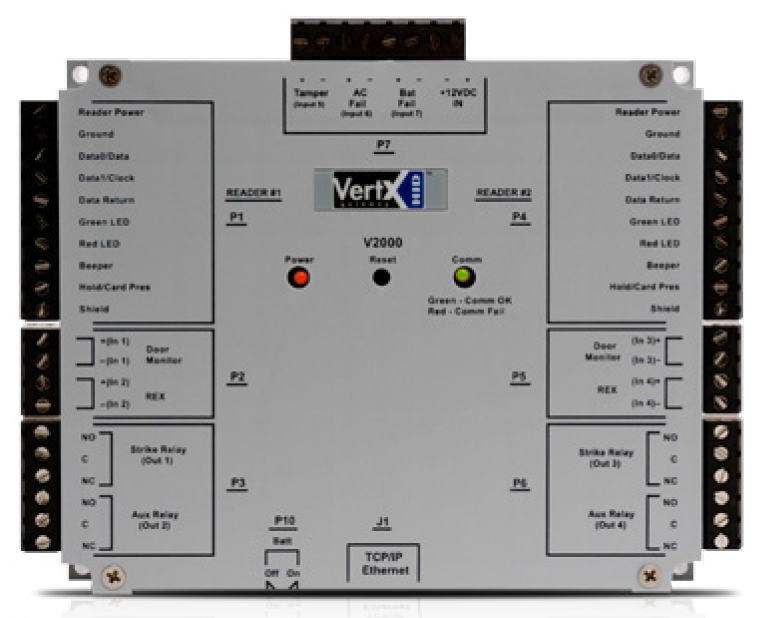

V2000

ACCESS CONTROL PROCESSING AND HOST INTERFACE FOR TWO READERS/DOORS • 72000

ƒ Connects with and stores a complete access control and configuration databasefor one or two controlled doors and 44,000 cardholders with expansion capability to 250,000 cardholders.

ƒ Processes access control decisions.

ƒ Reports supervised inputs/alarms with 255 priorities.

ƒ Includes an HTTP API, Windows® DLL-based API, and a direct communication API.

ƒ Enables local connection of a laptop computer for diagnostics and configuration.

ƒ Connects to the host and to other devices on the TCP/IP network.

ƒ Receives and processes real-time commands from the host software application.

ƒ Reports all activity to the host.

ƒ Controls and communicates with all connected devices.

ƒ Buffers offline transactions and uploads to the host when communication is restored.

ƒ UL® 294 and UL® 1076 recognized components .

The HID VertX™ products provide a complete and fully featured hardware/ firmware infrastructure for OEM access control software host systems, communicating via industry standard TCP/IP protocol, over 10/100 Mbps Ethernet or the Internet. It can also interface with a Windows® DLL. The V2000 boasts a 32-bit RISC processor running the Linux Operating System.

On-board flash memory enables program updates to be downloaded via the network. The V2000 connects to two access control card readers via Wiegand or Clock-and-Data interface, controlling either one or two doors. This architecture takes advantage of the existing corporate LAN and the existing CAT-5 cable.
