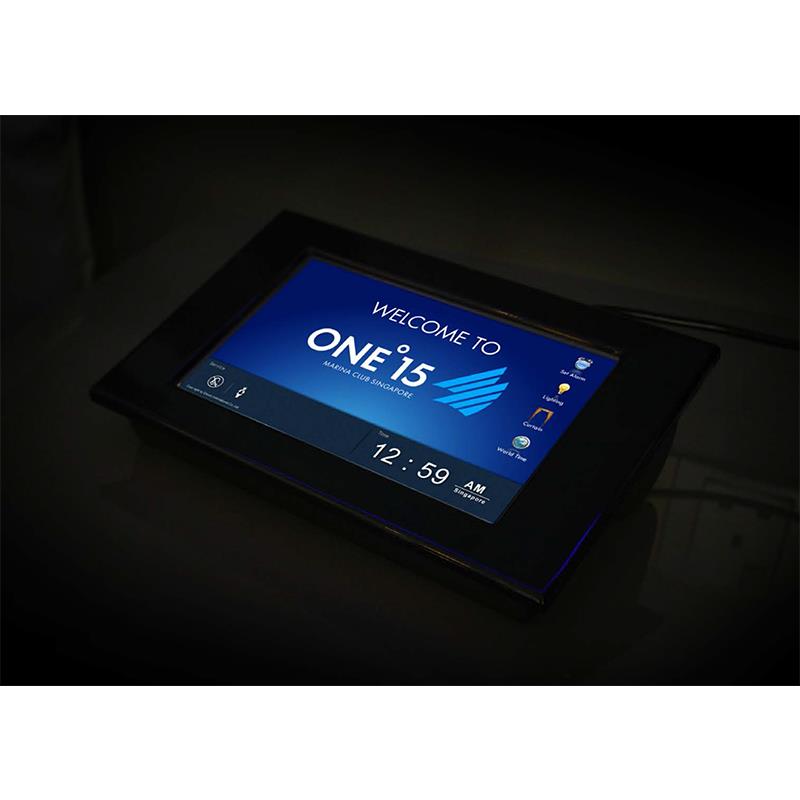

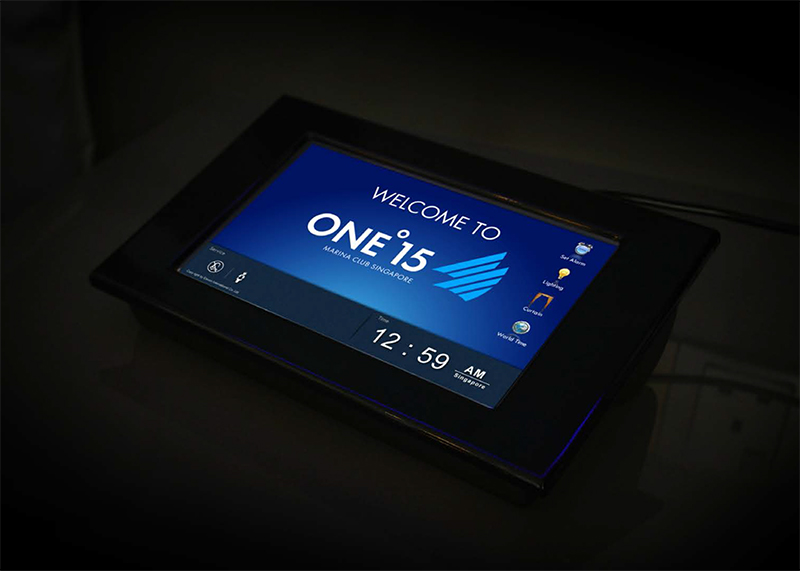

TOUCH SCREEN BEDSIDE PANEL

INTRODUCTION

Touch Screen Bedside Panel is Elecon’s Latest product, an LCD screen exit in different types on display that enables multifunction which integrated with Guest Room Control Unit and other recent accessory function. Provides ultimate convenience to the guest and excellent power saving for hotels. Guest will have the option to configure the Elecon Touch Screen Bedside based on his requirements.

•Display can be dimmed, turned on or lighting, scene setting, drape and temperature control.

•LED clock/alarm clock.

•World time.

•Privacy and make-up room annunciation.

•In-room doorbell annunciation supports Unicode for multiple languages applications.

SPECIFICATIONS

Our Screen is a color active matrix TFT-LCD That uses amorphous silicon TFT as a switching device. This model is composed of a

5.7/7 inches TFT-LCD panel, a driving circuit, touch panel and LED backlight system. This TFT-LED has a high resolution and can display up to 262,144 colors.

5.7 INCHES COLOR VGA TFT MODULE

Display resolution (dot): 640RGB (W) X 480(H) dots. Display area : 116.16(W) X 87.12 (H) mm. Pixel pitch : 0.18 (W) X 0.18 (H) mm. Color Configuration : RGB Vertical stripe
Overall dimension : 127.0 (W) X 98.43 (H)

X 9.1(D) – (Type) mm.

7INCHES COLOR VGA TFT MODULE

Display resolution (dot) : 800RGB(W) X 480(H) dots. Display area : 152.4(W) X 91.44(H) mm. Pixel pitch : 0.1905 (W) X 0.1905(H) mm. Color Configuration : RGB Vertical Stripe
Overall dimension : 178.5 (W) X 110.0 (H)

X 19.8(D) – (Type)mm.
