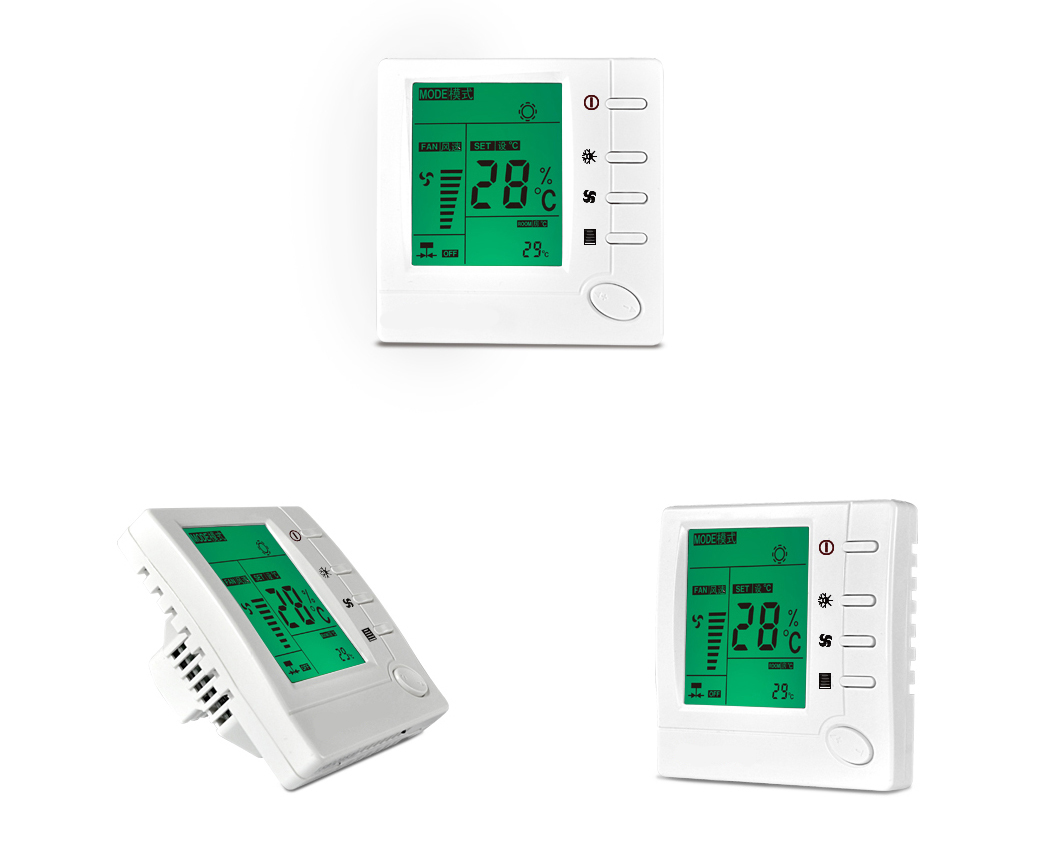

The 803FCT/2 Series of Digital thermostats are specifically designed for control of commercial heating and cooling equipment such as rooftop units (with and without economizers), heat pumps, and fan coil unit
Download Catalog
The 803FCT/2 Series of Digital thermostats are specifically designed for control of commercial heating and cooling equipment such as rooftop units (with and without economizers), heat pumps, and fan coil unit. The large LCD display is easy to set up and program through the use of a plain text menu driven backlit display that walks the user
through the programming process. Additionally, the 803FCT/2 has over four configurable parameters, enabling the thermostats to adapt to a variety of applications..
SPECIFICATION-------------------------------------------------------------------------------------------
Power Supply…………………………...….....100~240VAC,50/60Hz
Fan speed Relay………………………….......2A
Cooling/Heating Relay…………………….....0.5A
Room Temperature Scale…………………...5 oC to 35oC

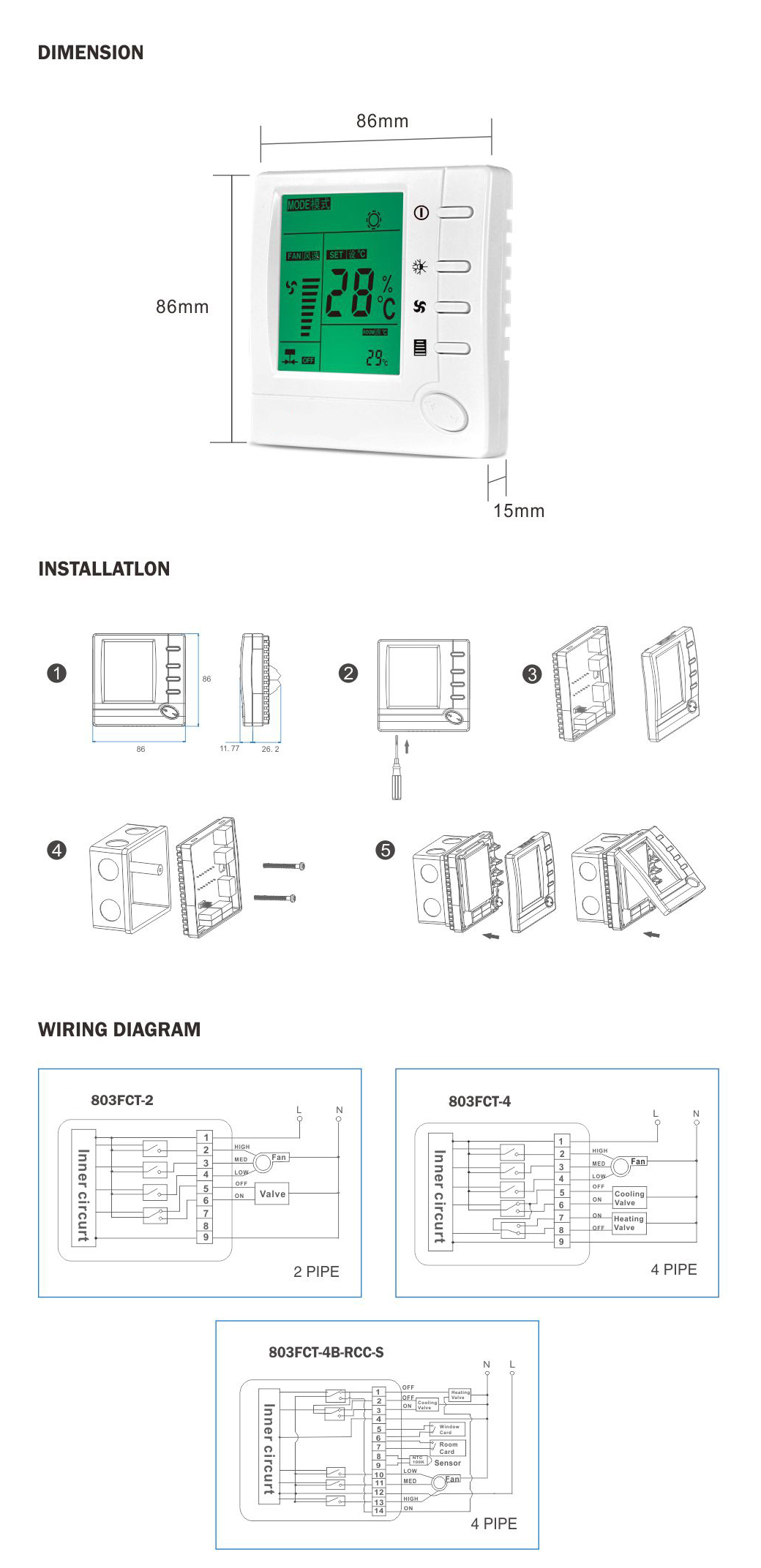

Dimensions…………………………….…...…86x86x15mm( 3.38x3.38x0.6inch)
FEATURES AND BENEFITS---------------------------------------------------------------------------
− Large LCD display with backlight
− Temperature adjustments are simple with the large up-down arrows
− Display shows both set points and room temperaturesimultaneously
− Maintains the temperature to within 1 degree set point
− Auto fan with adjustable 3-fan speed
− Permanent user setting retention during power loss, no batteries are required
− Input room card for energy saving mode Room Card Function
