Mã thiết bị: DRP-T0B

Hãng sản xuất: Delta Controls

Xuất xứ: Canada

Liên hệ: Mr Chương - 0983452446

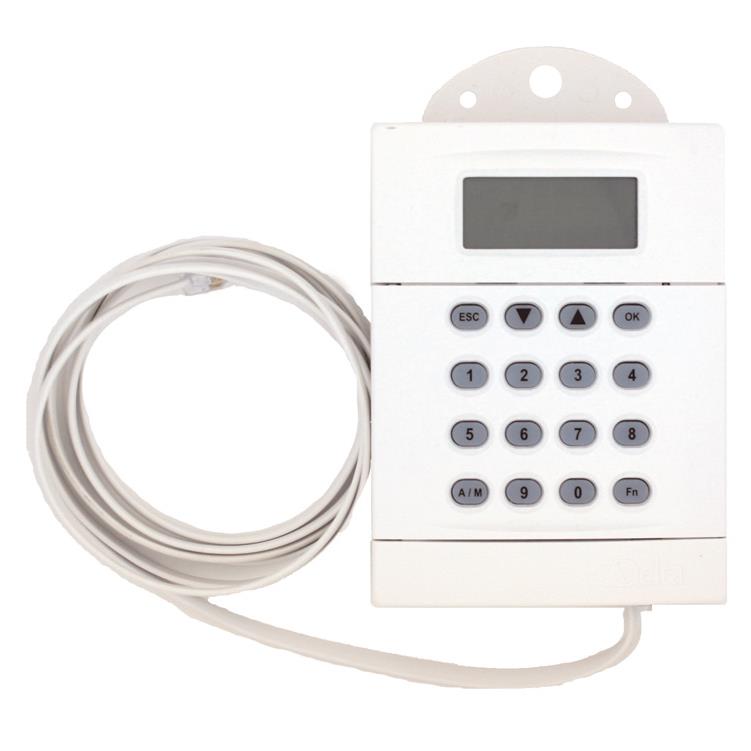

The DRP-T0B provides a keypad interface to Delta Controls’ Native BACnet™ System Controllers. This controller communicates on a LINKnet network and has no I/O. When connected to a System Controller, the DRP-T0B provides an interface to various objects and their properties through a hierarchical menu structure as well as a system display for viewing the status of equipment.



The DRP-T0B is suited to applications where a detailed

interface with graphics and programming is not

required. This keypad interface can be used to view

system status, adjust object values or properties.


—Hand-held operation
—Controller firmware can be flashloaded over the

—LINKnet communication —Attractive wall-mount housing —16 Button keypad
—Built in 10kΩ thermistor —Service port



Large font 4-digit alpha numeric display

(for time, object value or units)

Small font 4-digit alpha numeric display

(for time or units display)
12-digit alpha numeric display (for object

names, menu commands or options) 10 display icons representing different

functions Backlighting Keypad

16 buttons
Security door Communication Ports

Main LAN (NET1)

Delta LINKnet @ 76800 bps Temperature Sensor

Thermistor input - 10kΩ at 77°F


Accuracy +/-0.4°F from 32-158°F

(+/- 0.2°C from 0-70°C)

Display resolution of 0.1°

Stability 0.24°F over 5 years (0.13°C)
