BTU Meter

DESCRIPTION

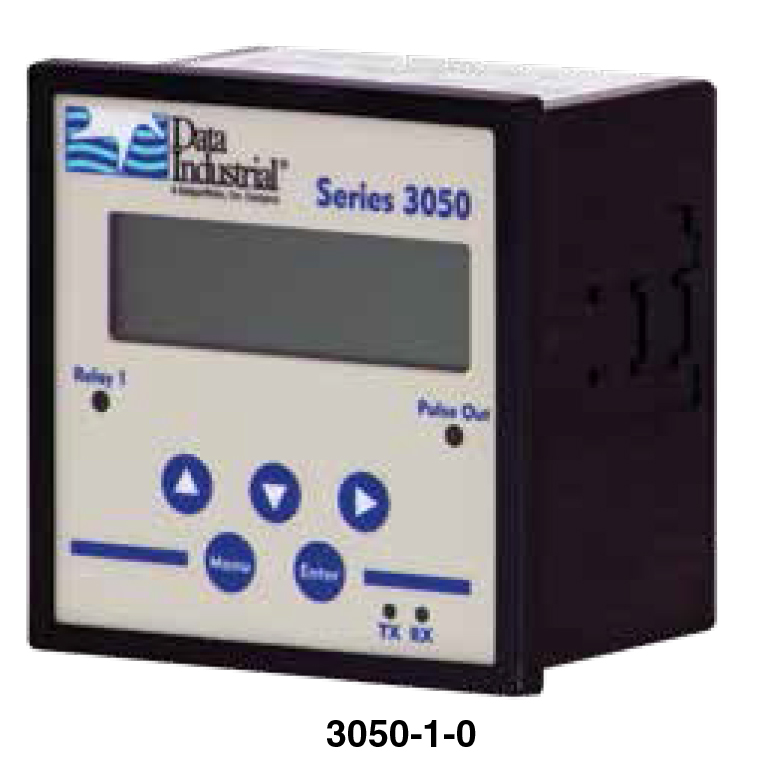

The Badger Meter 3050 Series flow and energy monitor
is economical, full-featured, compact unit designed for flow and BTU measurement applications. Outputs include one mechanical relay and one solid state pulse output, featuring unit/pulse and set-point control independently based on flow or total readings.

OPTIONAL FEATURES

An analog 4-20 mA or 0-20 mA output is optional and USB, RS-485 Modbus, and BACnet/MSTP provide high-level communication. A two-line by 16-character, 3/8" high backlit LCD display is configured by the user to display flow rate and flow total. Custom units can be created during field setup. The flow sensor input features flexible scaling options and signal type selections that permit the use of most Data Industrial meter sensors, or other frequency (sine/pulse) or linear devices. Matched 10 kΩ thermistors (ordered separately)

provide temperature differential for BTU calculations.

One mechanical relay and one solid state relay output Optional 0/4-20 mA output
USB, RS-485, Modbus, and BACnet/MSTP all in one unit

FEATURES

• Menu-driven programming or Windows based programming

• NEMA 4X rated enclosure

• Two-line x 16-character display

• Password-restricted access

• Non-volatile memory

• Temperature sensor zeroing
