ADS Lite-A

The Application and Data Server (ADS) Lite-A system leverages the building control and data storage capabilities of an ADS with the scalability of the Metasys® engines to meet the needs of middle-sized buildings and campuses.

The Application and Data Server (ADS) Lite-A manages the collection and presentation of large amounts of trend data, event messages, operator transactions, and system configuration data. As Site Director, the ADS-Lite-A provides secure communication to a network of Network Automation Engine (NAE) 45-Lites and Network Integration Engines (NIEs).

The Site Management Portal UI of the ADS-Lite-A provides flexible system navigation, user graphics, comprehensive alarm management, trend analysis, and summary reporting capabilities. With the Site Management Portal UI, you can efficiently manage occupant comfort and energy usage, quickly respond to critical events, and optimize control strategies. The ADS-Lite-A includes an Open Database Connectivity (ODBC) compliant database package for secure storage of historical and configuration data.

An optional interface called the Ready Access Portal UI provides an intuitive, task-based user experience designed for remote operations of your building.

The Metasys system can communicate with cloud-based applications easily and securely. To make this connection, the Metasys system requires minor programming and set up by Johnson Controls. Once connected, you can access multiple cloud-based applications and features. To learn more, please visit www.jci.com and visit the Metasys product information page.

Note:

In this document, the term engine refers to all supported NAE45-Lites, and NIEs, unless otherwise noted. The ADS-Lite-A supports up to three NAE45-Lites and one NIE29/39/49.

The Network Automation Engine (NAE) 45-Lite enables IP connectivity and web-based access to Metasys® Building Management Systems (BMSs).

The NAE45-Lite leverages standard BACnet building management communication technologies, including BACnet® protocol, to monitor and supervise a wide variety of HVAC, lighting, security, fire, and access control equipment.

The NAE45-Lite provides comprehensive equipment monitoring and control, scheduling, alarm and event management, energy management, data exchange, data trending, and data storage.

The NAE45-Lite enables cost-effective connectivity and control in small to medium facilities.

Refer to the Application and Data Server Application and Data Server (ADS) Lite-A System Product Bulletin (LIT-12011694) for important

product application information.

Features

•Communication Using Commonly Accepted IT Standards

•Web-Based User Interface

•UI Support for 5 Users

•Support for 4 Engines: 3 NAE45-Lites and 1 NIE29/NIE39/NIE49

•Support for MS/TP Bus, BACnet® Protocol, and Third-Party Communication

•Support for Language Installation Program (LIP)

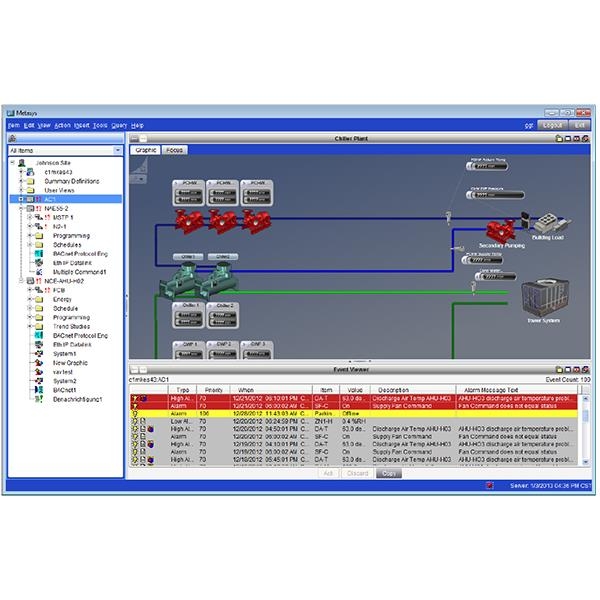

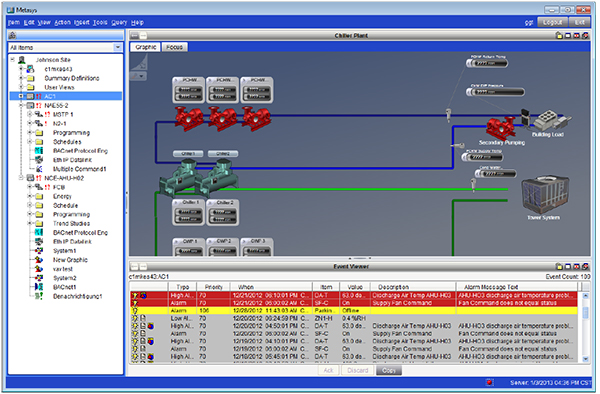

Figure 1: ADS-Lite-A Site Management Portal UI
