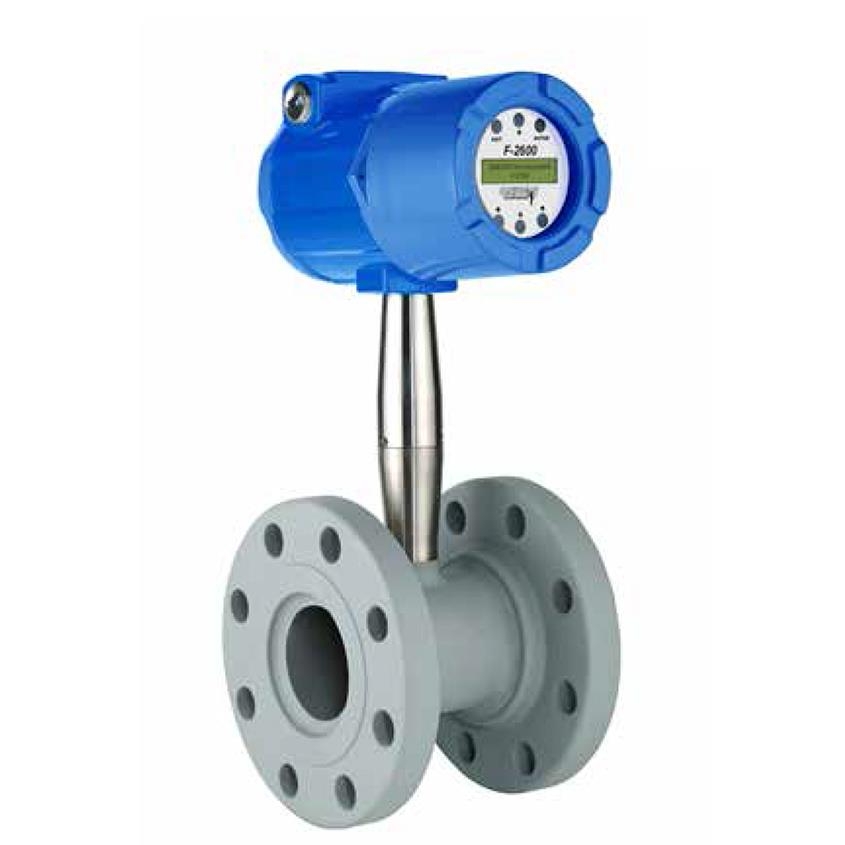

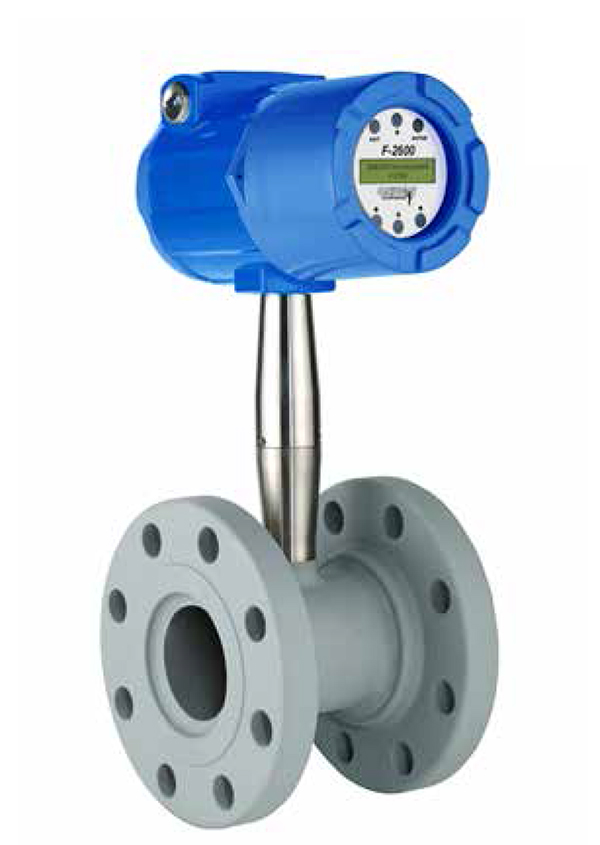

The ONICON F-2600 Series Vortex Flow Meter is a ﬂexible design that provides accurate, reliable ﬂow measurement in steam and high temperature water applications. The F-2600 is designed with a two stage all welded bluff body/sensor design that enhances signal sensitivity and extends the operating range of the meter. This innovative feature also protects the sensors from pressure shocks and solids suspended
in the ﬂow stream.
The basic loop powered model provides volumetric ﬂow measurement for water at temperatures up to 500° F. Adding the integral temperature sensor option allows for mass ﬂow measurement of saturated steam. Meters provided with integral pressure and temperature sensors are capable of measuring mass ﬂow of superheated steam. Optional versions of the meter are also available that include serial communications and multiple analog outputs.
• Saturated steam
• Hot water to 500° F (260° C) standard 750° F (400° C) optional
Applications with optional pressure sensor
• Superheated steam to 500° F (260° C) standard 750° F (400° C) optional
• Compressed air
• Industrial gases
Every ONICON ﬂow meter is wet calibrated in a ﬂow laboratory against standards that are directly traceable to N.I.S.T. A certiﬁcate of calibration accompanies every meter.
• Mass ﬂow measurement from a single instrument
• Optional steam energy ﬂow measurement
• Integral 1,000 W platinum RTD for precise
•Optional pressure transducer for accurate pressure readings at the meter location
•Maintenance free non-moving parts design
•Wear resistant bluff body/sensor design
•Advanced signal processing algorithms ensure stable ﬂow readings and reject noise
•Easy-to-install meter arrives fully programmed and ready to use
Percent of reading accuracy to within:
± 0.7% for liquids (volumetric)
± 1% for steam and gases (volumetric) ± 1.5% for steam and gases (mass)
For Reynolds Number ≥ 10,000
Repeatability: ± 0.2%
Long term stability: ± 0.2% over a period of 1 year
