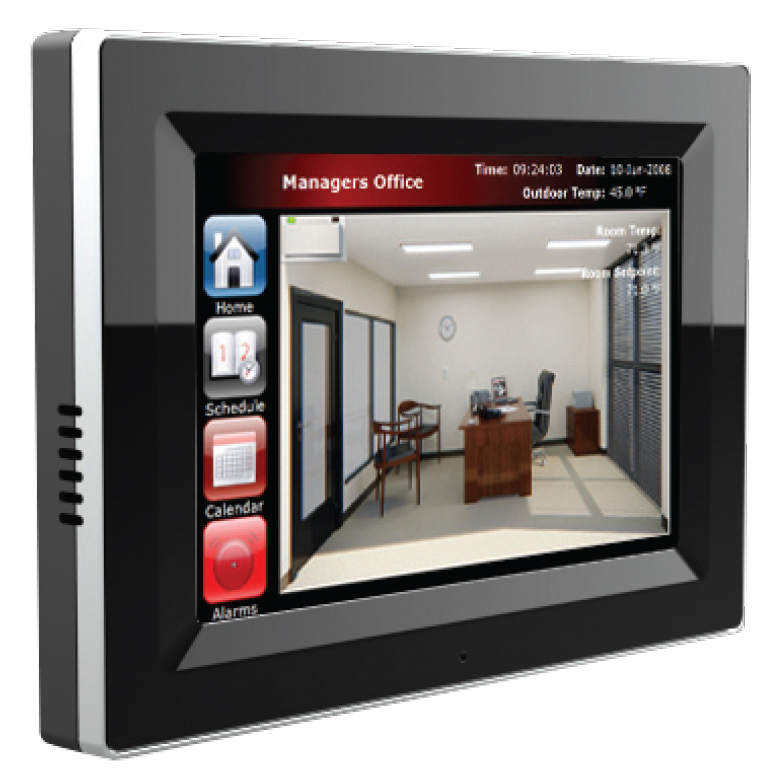

Touch Screen Interface: enteliTOUCH (eTCH-7E)

Description

The enteliTOUCH (eTCH-7E) is a 7-inch diagonal, high resolution, wide-screen format, color LCD used for interfacing with the Delta Controls Building Automation System. It uses BACnet® to communicate with controllers on a local area network and can act as a wireless coordinator to enteliMESH products. User created graphics allow the enteliTOUCH to be completely customized for a given application.

enteliTOUCH

Application

enteliTOUCH allows operators to monitor and manage building automation systems by using custom realtime graphics.

The enteliTOUCH display can be wall or panel mounted in mechanical rooms, which allows for monitoring and setting schedules for air handlers, boilers, chillers and other mechanical equipment.

It can also be used as the main interface to enteliMESH wireless controllers and sensors, making zone control applications such as VAV, fan coil and heat pump, simple and cost effective.

Features

— High resolution, wide-screen display

— Touch screen interface, no stylus required

— Attractive, modern design

— Panel, wall, new and retrofit wallboard mounting

— Create custom enteliTOUCH graphics

— Modify controller schedules and calendars

— Display and acknowledge alarms

— Change setpoints, monitor inputs and outputs

— Multiple users and passwords for restricting access

— Firmware can be flash loaded over the network or from a USB drive

— Optional wireless interface for communication with Delta’s enteliMESH wireless sensors and field modules

— Embedded web server for internet connection and remote operation

— E-mail alarm notifications automatically

Specifications

BACnet Device Profile

BACnet Building Controller (B-BC) BACnet Operator Display (B-OD) Technology

32-bit RISC ARM9 Processor
256MB Flash Memory (~195 MB available

for graphics and eTCH database) Real-time clock
Super capacitor for 72-hr backup of real-

time clock

2 USB ports LCD Display

Touch screen LCD with 7-inch diagonal

widescreen display
High resolution 800 x 480 (WVGA),

16bit color Sound

2-Speakers
Internal Thermistor (On-Board)

10kΩ
