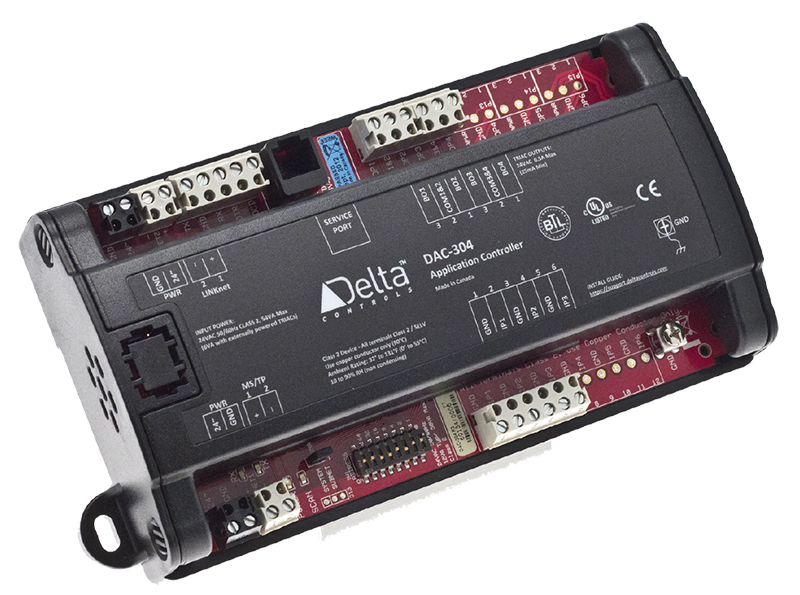

DAC-304
DAC-304

DAC-304

Còn hàng

Description The DAC-304 is a fully programmable, Native BACnet™ Advanced Application Controller that communicates on an RS-485 LAN using the BACnet MS/TP protocol. The DAC-304 is designed for a wide-range of applications that have small local I/O requirements. It also...

Liên hệ

Thương hiệu:

Description

The DAC-304 is a fully programmable, Native BACnet™ Advanced Application Controller that communicates on an RS-485 LAN using the BACnet MS/TP protocol. The DAC-304 is designed for a wide-range of applications that have small local I/O requirements. It also supports BACstats and other Delta LINKnet devices.

DAC-304

Application

The DAC-304 is suitable for controlling various packaged units and equipment with small I/O requirements such as Fan Coil units, Unit Ventilators and Heat Pumps.

The fully programmable DAC-304 can be tailored to specific applications by creating and modifying BACnet objects and GCL+ programs.

Features

Native BACnet firmware

Fully programmable in GCL+

BACnet MS/TP communications

Supports 4 BACstat network sensors on LINKnet for room sensing and control or 2 Delta Field Modules on LINKnet for I/O expansion

Firmware upgrade and database load/ save over the network

Supports Modbus capability via flash loading in the field

Service port

Screw or DIN rail mountable

Specifications

BACnet Device Profile

BACnet Advanced Application Controller (B-AAC)

Inputs

3 Universal inputs - 10 bit (supporting 0-5v, 0-10v, 10kΩ, 4-20mA)

Outputs

4 Binary TRIAC outputs (jumper configured for internal or external power)

LED status indication of each output

Technology

32-bit processor
1 MB Flash memory
127 KB SRAM memory for database LED indication of CPU and SCAN status

Device Addressing

Set via DIP switches or software addressed
