FEATURES

Simple to Use - It only takes a minute to insert the flow meter and begin taking readings, without disrupting flow. This simplifies periodic flow testing and system troubleshooting.

Works in a Wide Range of Pipe Sizes - The D-1400 reads the frequency output from the flow meter. This output is converted to a flow rate using a simple conversion chart. This allows a single flow meter to be used measure flow in an entire system consisting of many different pipe sizes.

Excellent Long-term Reliability - Patented electronic sensing is resistant to scale and particulate matter. Low mass turbines with engineered jewel bearing systems provide a mechanical system that virtually does not wear.

Simplified Hot Tap Insertion Design - Standard on ONICON insertion flow meters. The hot tap adapter allows for insertion and removal by hand without system shutdown.

DESCRIPTION

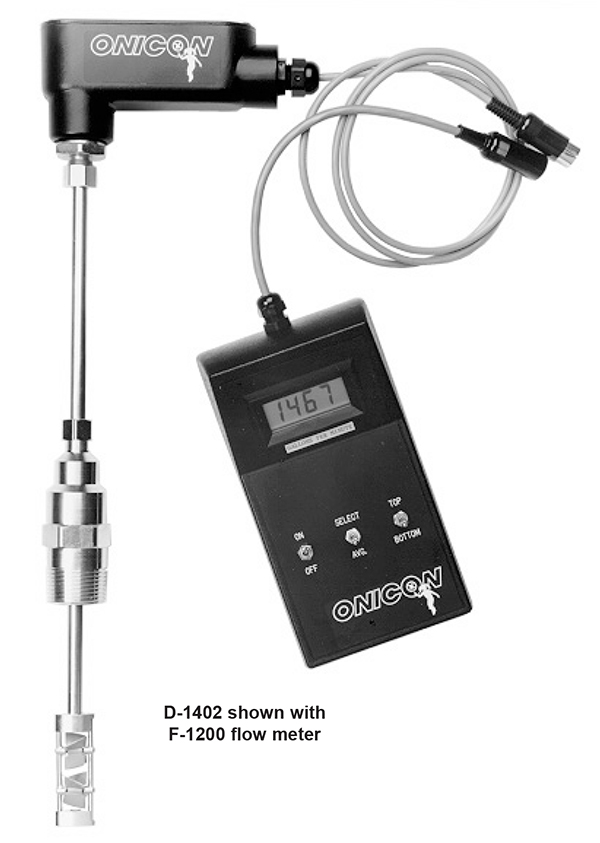

D-1400 series Portable Display Modules are battery powered, hand held displays designed to work with specially modified ONICON insertion turbine flow meters. Together, they form a simple to use portable metering system that accurately measures flow without the need for external power sources.

To use, simply insert the turbine meter into the flow stream using ONICON’s standard or hot tap installation hardware already installed on the pipe and plug in
the display using the attached cable. The display then provides a continuous indication of the flow meter’s frequency output. A conversion chart provided with the display allows the user to convert this frequency to a volumetric flow rate for a wide range of commonly used pipe sizes.

APPLICATIONS

•Flow testing closed loop HVAC chilled, hot and condenser water systems

•Process flow water & water mixtures

CALIBRATION

Every ONICON flow meter is wet calibrated in our flow laboratory against primary volumetric standards that are directly traceable to N.I.S.T. A certificate of calibration accompanies every meter.
