0497-4-Flow-Straightener
0497-4-Flow-Straightener

0497-4-Flow-Straightener

Còn hàng

DESCRIPTION The optional flow straightener accessory for ONICON F-2000 Series Vortex Flow Meters is a wafer-style flow conditioner that is designed to be installed between two ANSI Class 300 flanges (provided by installer) that are located a specified...

Liên hệ

Thương hiệu:

DESCRIPTION

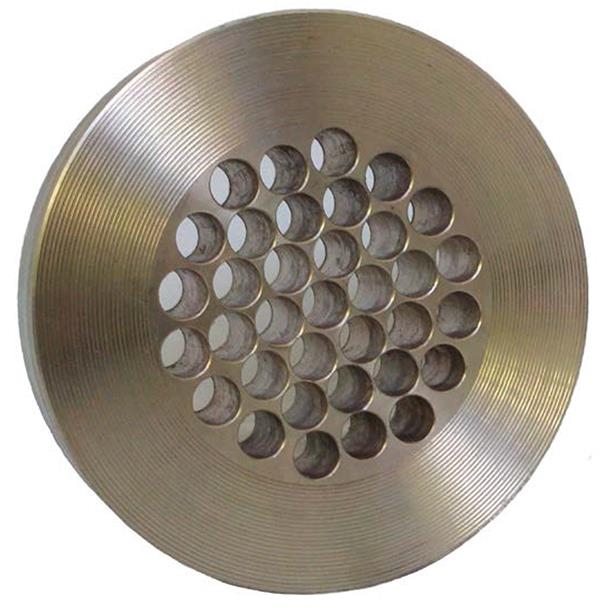

The optional flow straightener accessory for ONICON F-2000 Series Vortex Flow Meters is a wafer-style flow conditioner that is designed to be installed between two ANSI Class 300 flanges (provided by installer) that are located a specified distance upstream of the flow meter.

Use of a flow straightener significantly reduces the upstream straight pipe length requirement for ONICON Vortex Flow Meters.

The size of the straightener should always match the meter size (as opposed to the original pipe size).

The flow straightener is made of 304/A 351 CF8 Stainless Steel.

0497-4-Flow-Straightener
