FEATURES Simple Installation and Commissioning - Factory programmed and ready for use upon delivery. Single Source Responsibility - One manufacturer is responsible for every aspect of the energy measurement process, ensuring component compatibility and overall system accuracy. N.I.S.T.* Traceable Calibration with Certificate -...

FEATURES

Simple Installation and Commissioning - Factory programmed and ready for use upon delivery.

Single Source Responsibility - One manufacturer is responsible for every aspect of the energy measurement process, ensuring component compatibility and overall system accuracy.

N.I.S.T.* Traceable Calibration with Certificate -

Each Btu measurement system is individually calibrated using application specific flow and temperature data and is provided with a

calibration certificate.

Precision Solid-State Temperature Sensors -

Integral sensors are custom calibrated and matched to an accuracy better than ±0.15° F over the calibrated range.

Highly Accurate Integral Flow Meter - Built-in turbine flow meter is accurate to within ±0.5% of reading at the calibrated flow rate and within ±2% of reading over an extended range (0.8 - 38 gpm.)

Complete Installation Package - Mechanical installation hardware, sensor cable and installation instructions are provided to ensure error-free installation and optimal performance.

Serial Network Communications - Optional communications interface provides complete energy, flow and temperature data to the control system through a single network connection, reducing

installation costs.

*National Institute of Standards and Technology

0304-3-System-30-Generic

DESCRIPTION

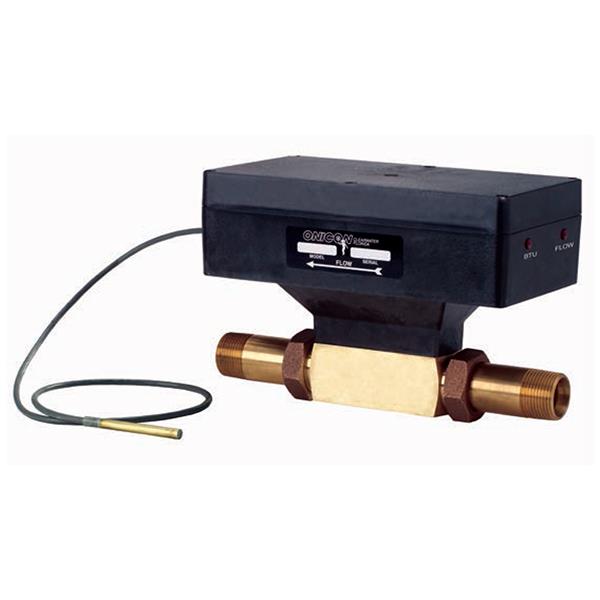

The System-30 provides highly accurate thermal energy measurement in chilled water, hot water and condenser water systems based on signal inputs from two integral, matched temperature sensors and an integral ONICON inline turbine meter. This compact system is designed to provide totalized energy for flow rates from 0.8 to 38 gpm. The totalized output
is available as a solid state dry contact closure.

Each System-30 is factory calibrated and comes complete with all installation hardware. An optional backlit display is also available that provides a local indication of energy rate and total, flow rate and total and supply and return temperatures.

Each System-30 is also provided with an auxiliary pulse input for totalizing the pulse output from an external device such as a water or gas meter. Pulses are totalized in an internal register and may be viewed on the optional local display or over any of the optional network interface connections.

APPLICATIONS

Chilled water, hot water and condenser water

systems for:

• Commercial office tenant billing

• Residential apartment and condominium

tenant billing

ORDERING INFORMATION

The System-30 is sold complete with integral flow meter, temperature sensors and (1) standard thermowell. Please refer to the ONICON catalog for available options.
